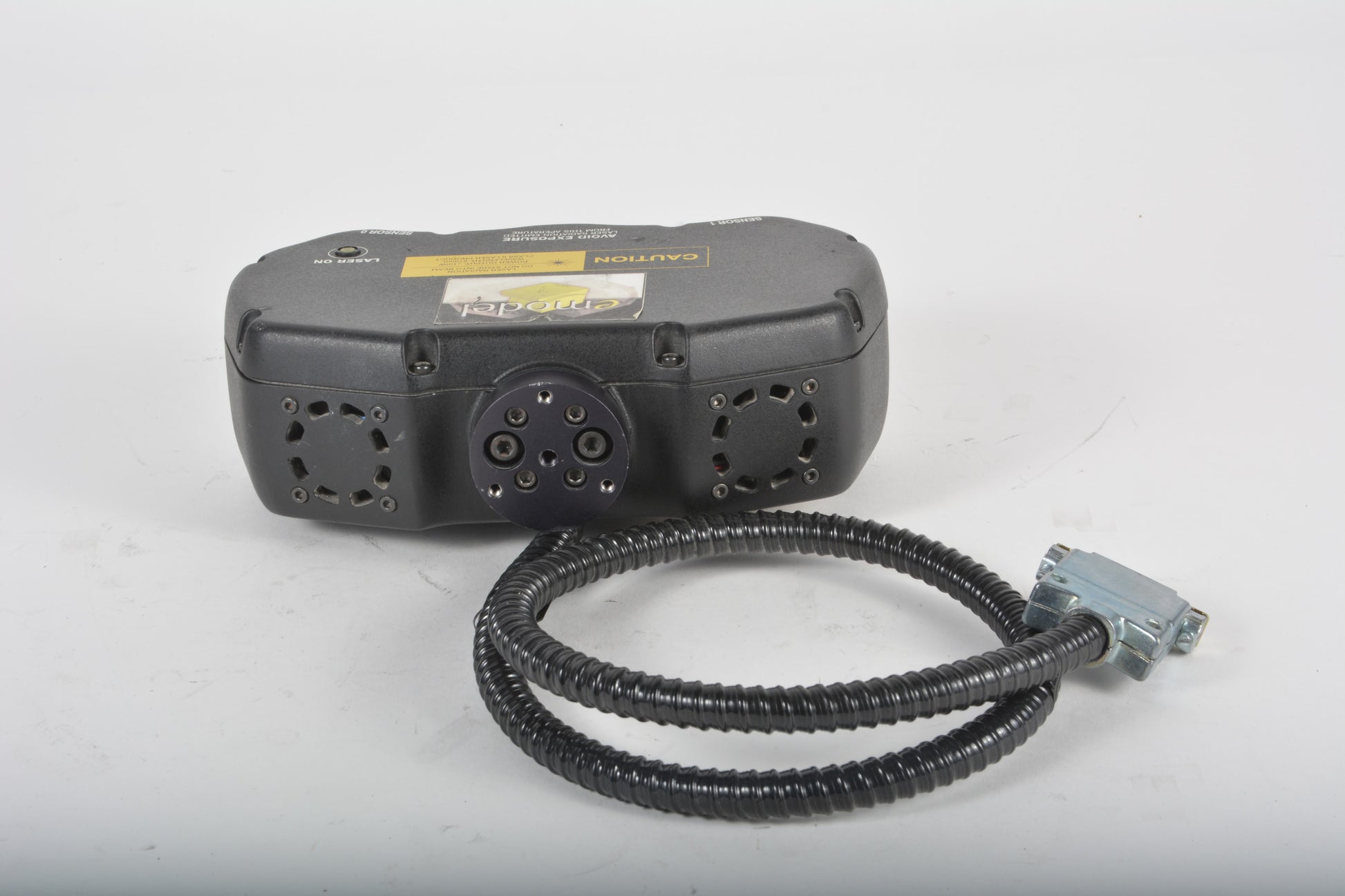

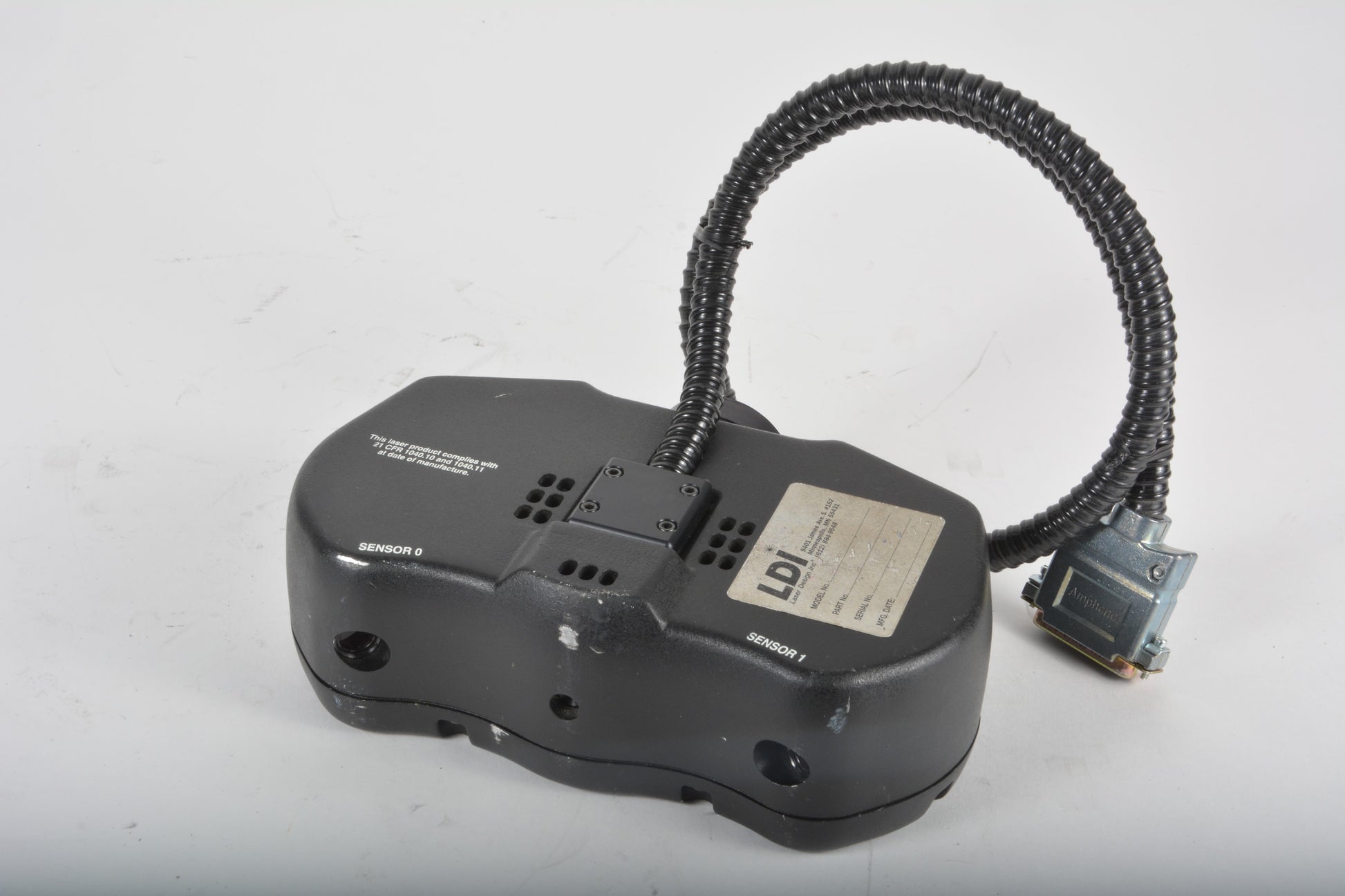

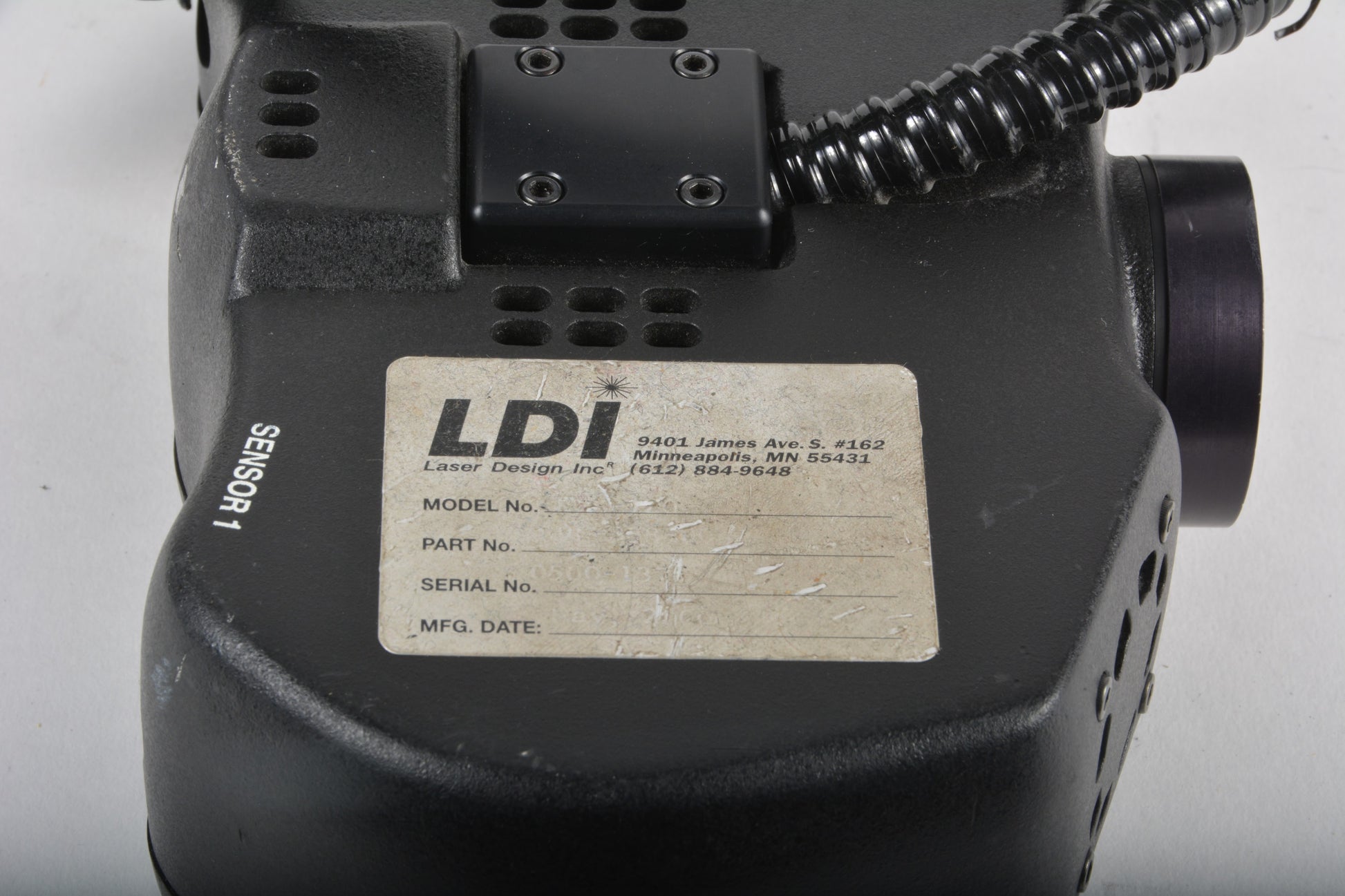

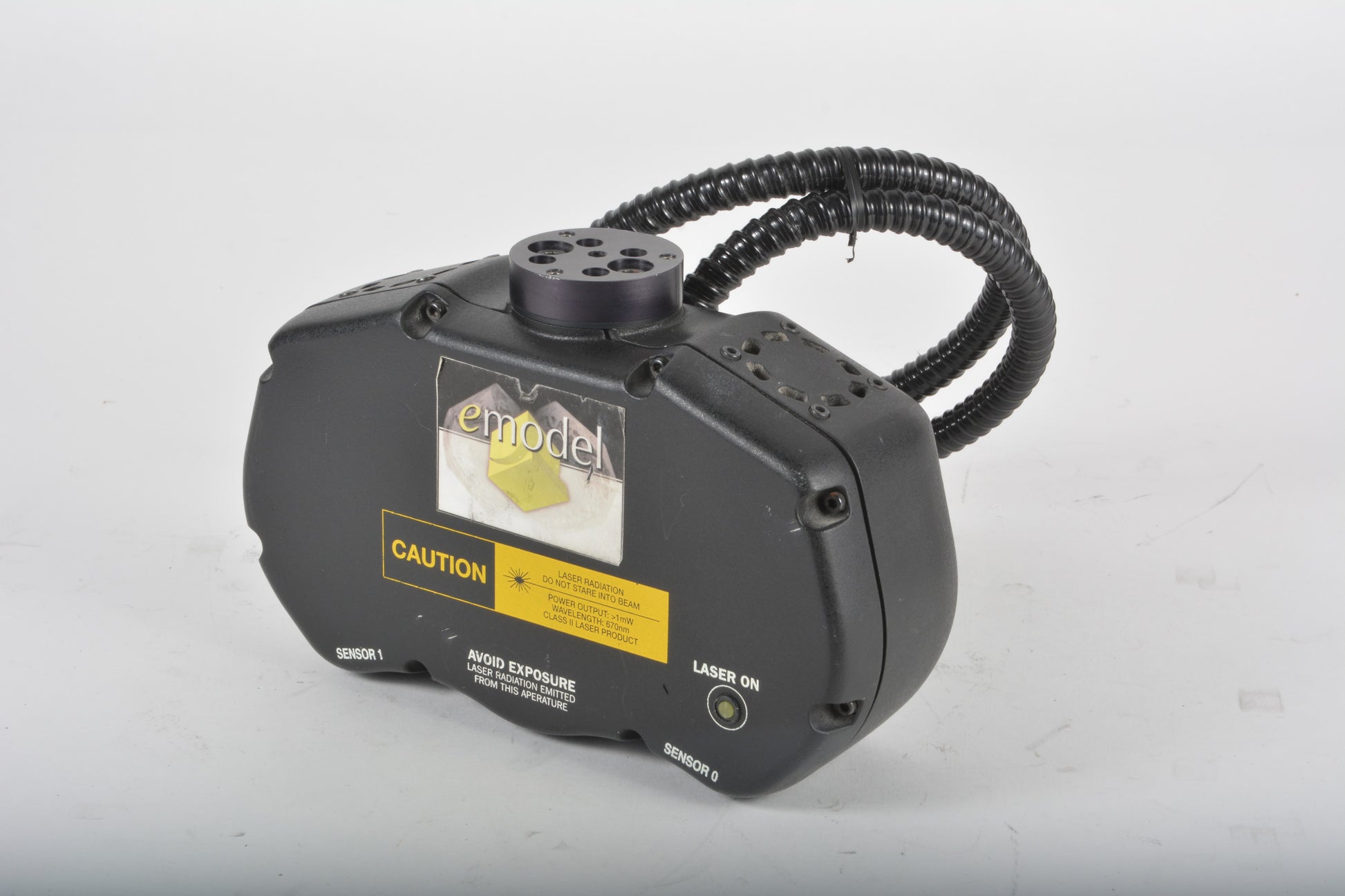

LDI Laser Design RPS-120 Probe Head 890-538-00 Scanner for 3D Surveyor, DS-2020

LDI Laser Design RPS-120 Probe Head 890-538-00 Scanner for 3D Surveyor, DS-2020

$594.26 USD
$594.26 USD
Sale Sold out
Shipping calculated at checkout.

2 in stock
Condition
Used
Description
Working pull, fully functional, 30-Day Guarantee!
Good overall cosmetic condition.
Units have some scuffs, scratches, blemishes or other cosmetic flaws.
Pictures are of one or more from the same batch of similar condition items being sold separately.
Includes One (1) item only as pictured.
On hand and ready to ship.
All offers considered, no reasonable offer refused. See Full Item Description for details.
Specifics
Manufacturer LDI
Part Number 890-538-00
Model Number RPS-120
SKU 19-28582
Ref 23-37367
Item Details
Item Details
Testing: This unit was pulled from a working environment for reasons that did not include any defects or performance issues. It has been cleaned and thoroughly inspected as well as any testing possible at our warehouse has been performed. If you have any questions related to this specific unit's testing (if applicable) please ask.

Full 30-day Guarantee. We are confident enough this unit will function normally we're willing to guarantee it for a full 30 days.

Includes 1 (One) of Pictured Item Only No additional software, parts, cables or accessories unless shown in photos or specified in listing.

Cosmetic condition is our Grade C which we consider to be Good working condition despite having some signs of wear and use such as scuffs, scratches, blemishes or other cosmetic issues. Since opinions regarding cosmetics can vary we ask you use the pictures provided to determine for yourself, if you need more please ask.

Description
Capturing up to 14,400 points per second, the Rapid Profile Scanning (RPS) probes are your answer for high-accuracy, high-speed, non-contact scanning. The RPS probe line features digital (ASCII) coordinate output, a visible beam, a Class II rating for safe and easy-to-see operations and a long standoff to prevent crashes during dynamic part scanning.

Key Features & Specifications
    Applications

  • 2D profile measurement
  • 3D scanning
  • Complex profile measuring
  • In-line process measuring
  • Part-checking against CAD
  • Flexible gauging
  • Height checking
  • Flatness checking
  • Steep side wall and deep groove scanning
  • Sharp edge determination



  • Laser Type: Laser diode
  • Laser Power Output: <1 mW, Class II
  • Laser Wavelength: 670 nm (visible red spectrum)
  • Beam Spreader: Passive optical, uniform dispersion, no moving parts
    • Standoff Distance
  • Near: 2.67” (68mm)
  • Mid: 3.07” (78mm)
  • Far: 3.50” (89mm)
  • Depth of Field (Measuring Range): .83” (21mm)
    • Line Length
  • Near: .43” (11mm)
  • Mid: .47” (12mm)
  • Far: .51” (13mm)
  • Accuracy (per point with averaging): +/-.00025” (.00635 mm)
  • Sample Count: 480 points per line
  • Sample Rate: 14,400 points per second
  • Sample Density (point spacing): .001” (.025 mm)
  • Detectors (dual): 760 x 480 digital CCD array
  • Minimum angle of incidence of laser beam to scanned surface: 20°
  • Typical Application: Small and medium-sized parts with fine detail features.
Published Specifications are available:
https://www.ntc-tech.com/file/i/46787350d56b86cb5b2b3ef4
