Haas Automation

Haas Automation C40SF.500-3.15-BCD CT40 1/2" Shrink Fit Holder x 3.15" 04-0046

Haas Automation C40SF.500-3.15-BCD CT40 1/2" Shrink Fit Holder x 3.15" 04-0046

$119.99 USD
$119.99 USD
Sale Sold out
Shipping calculated at checkout.

3 in stock
Condition
New
Description

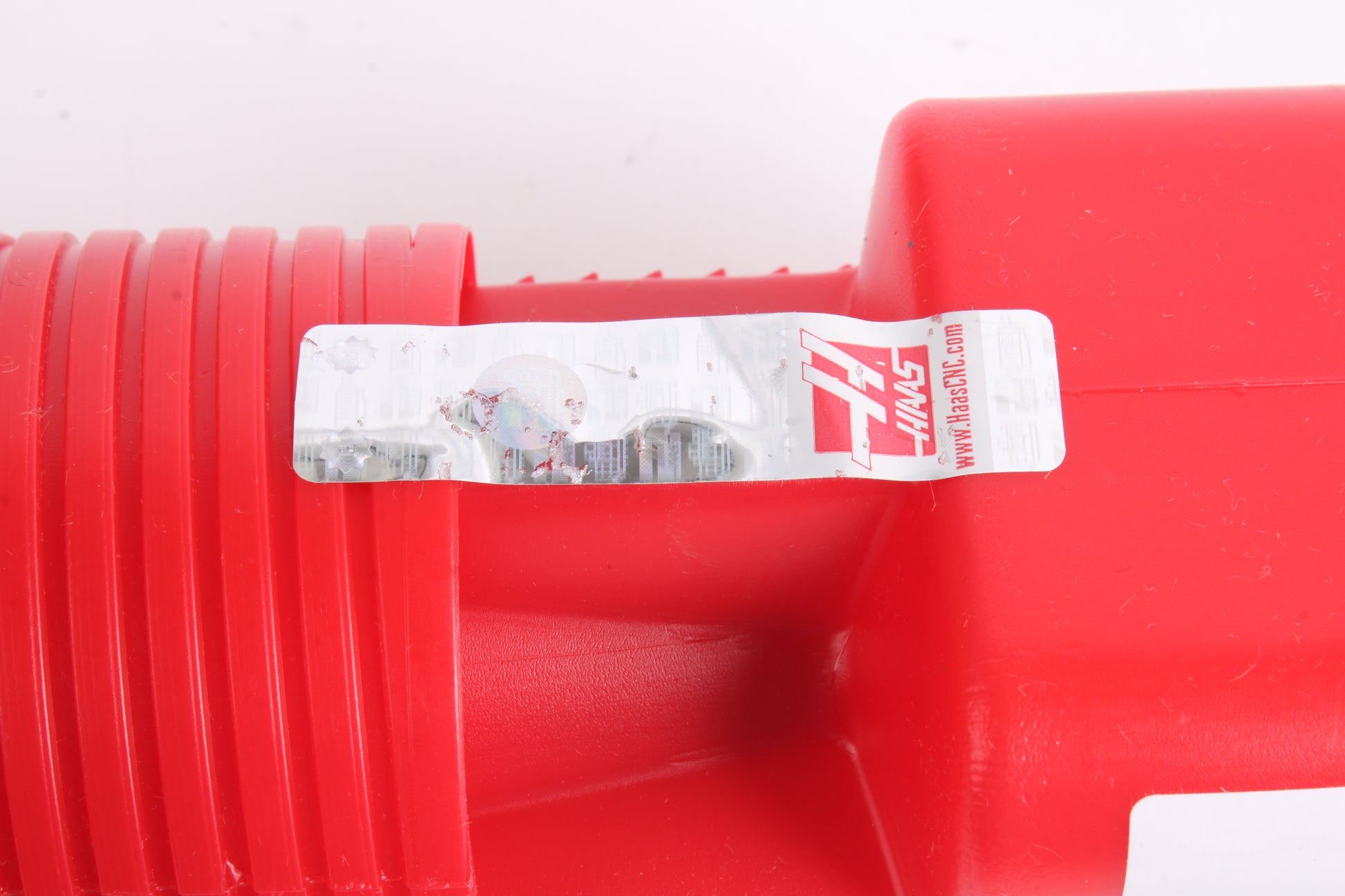

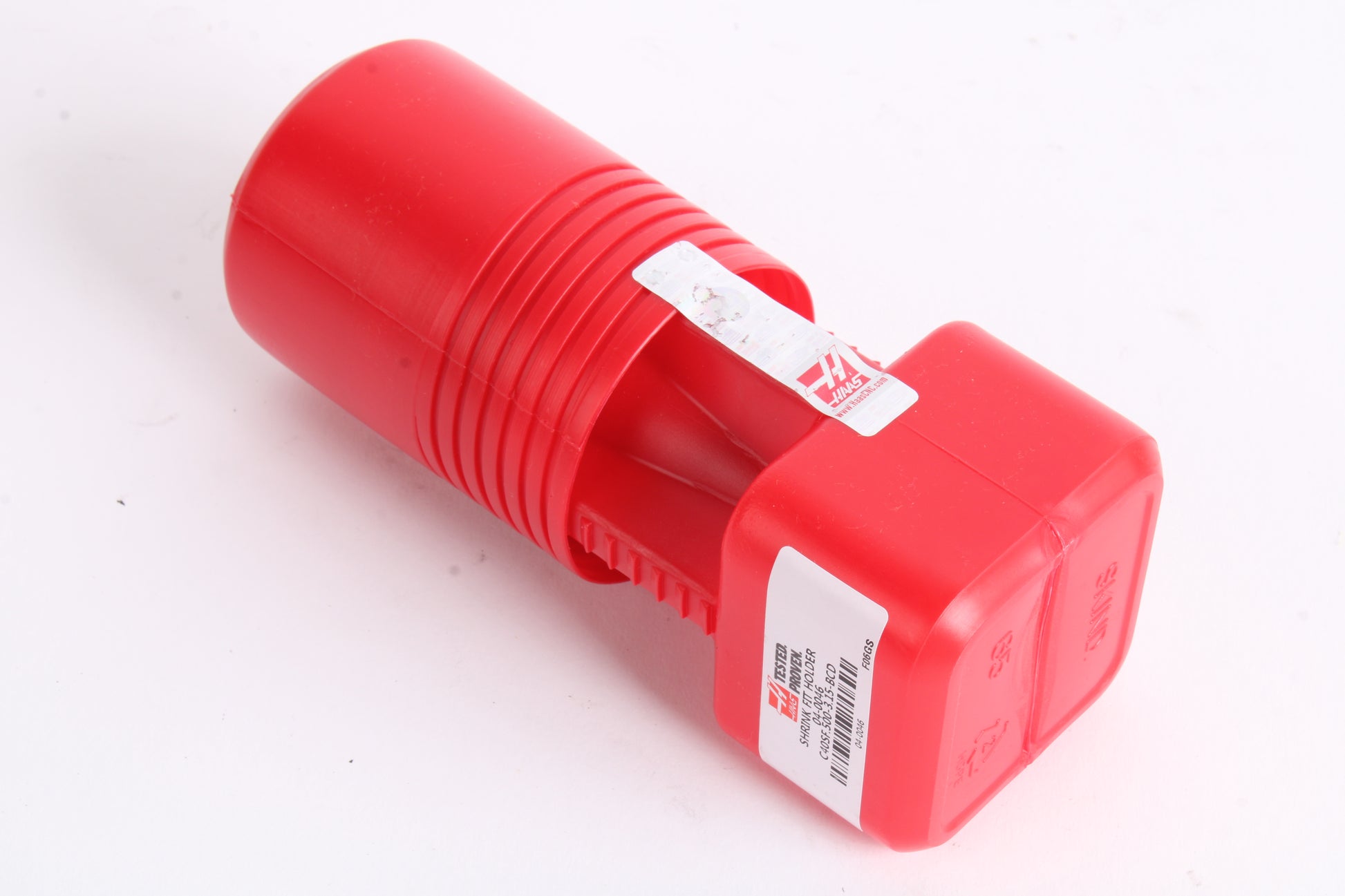

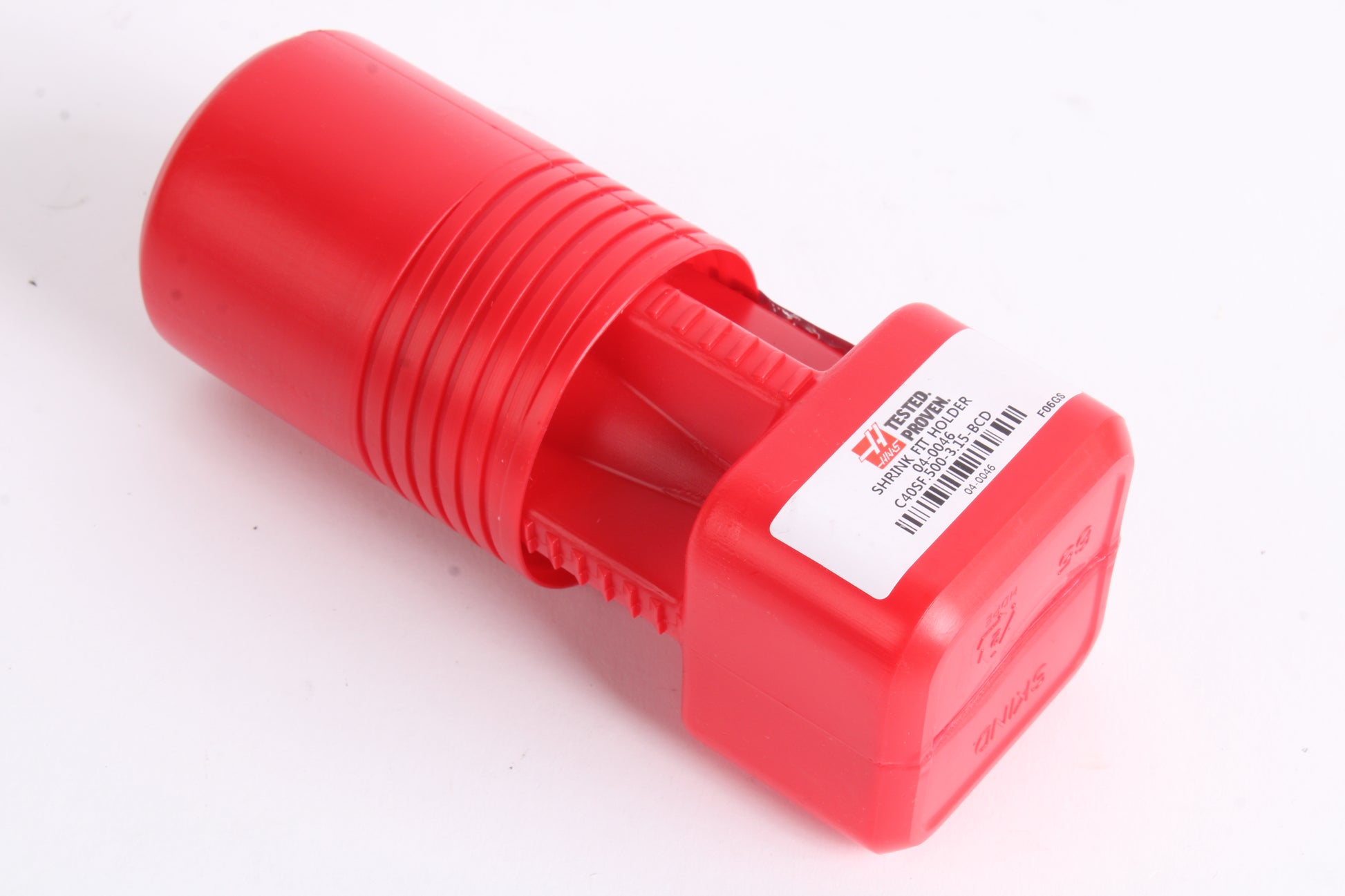

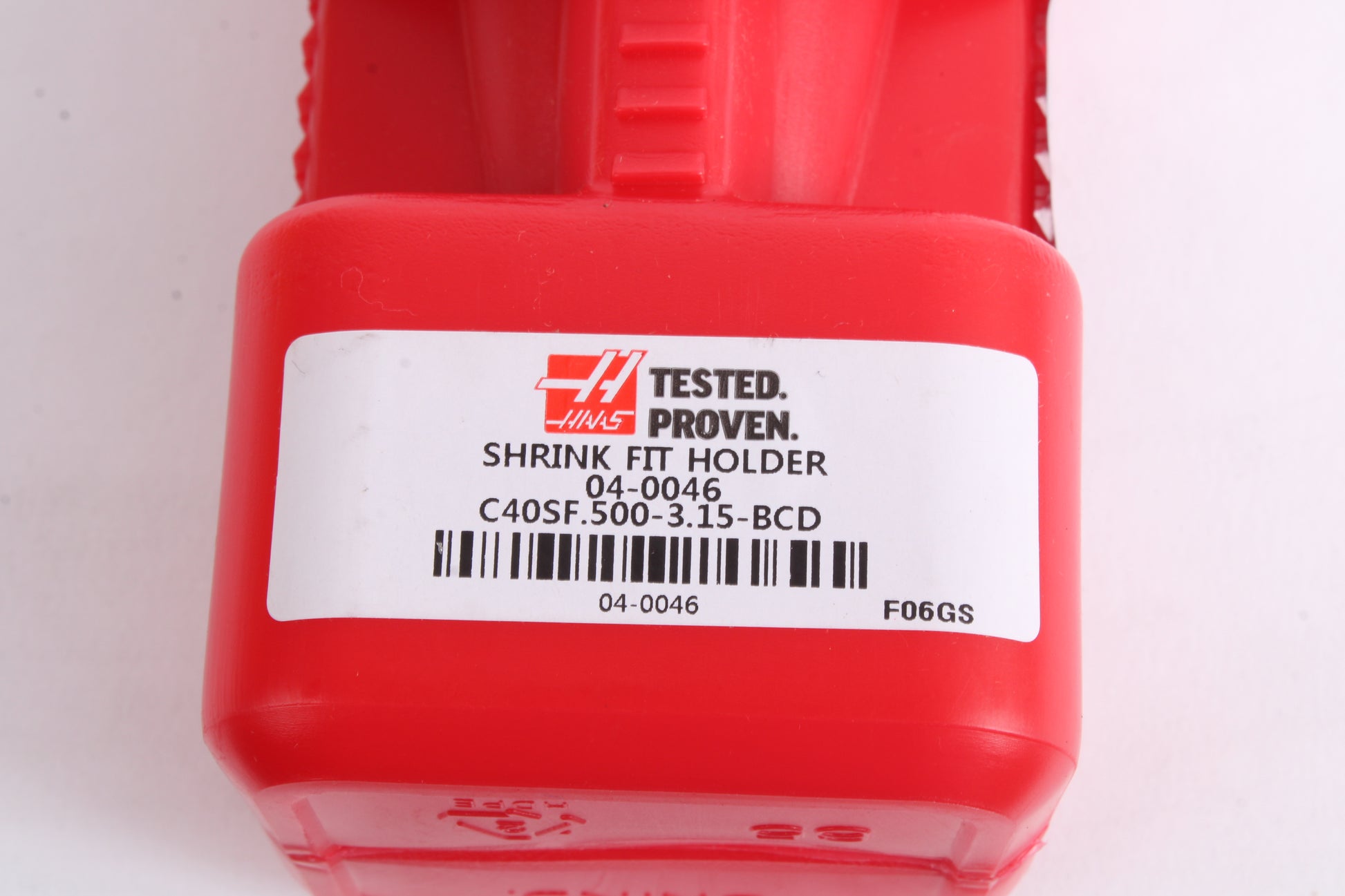

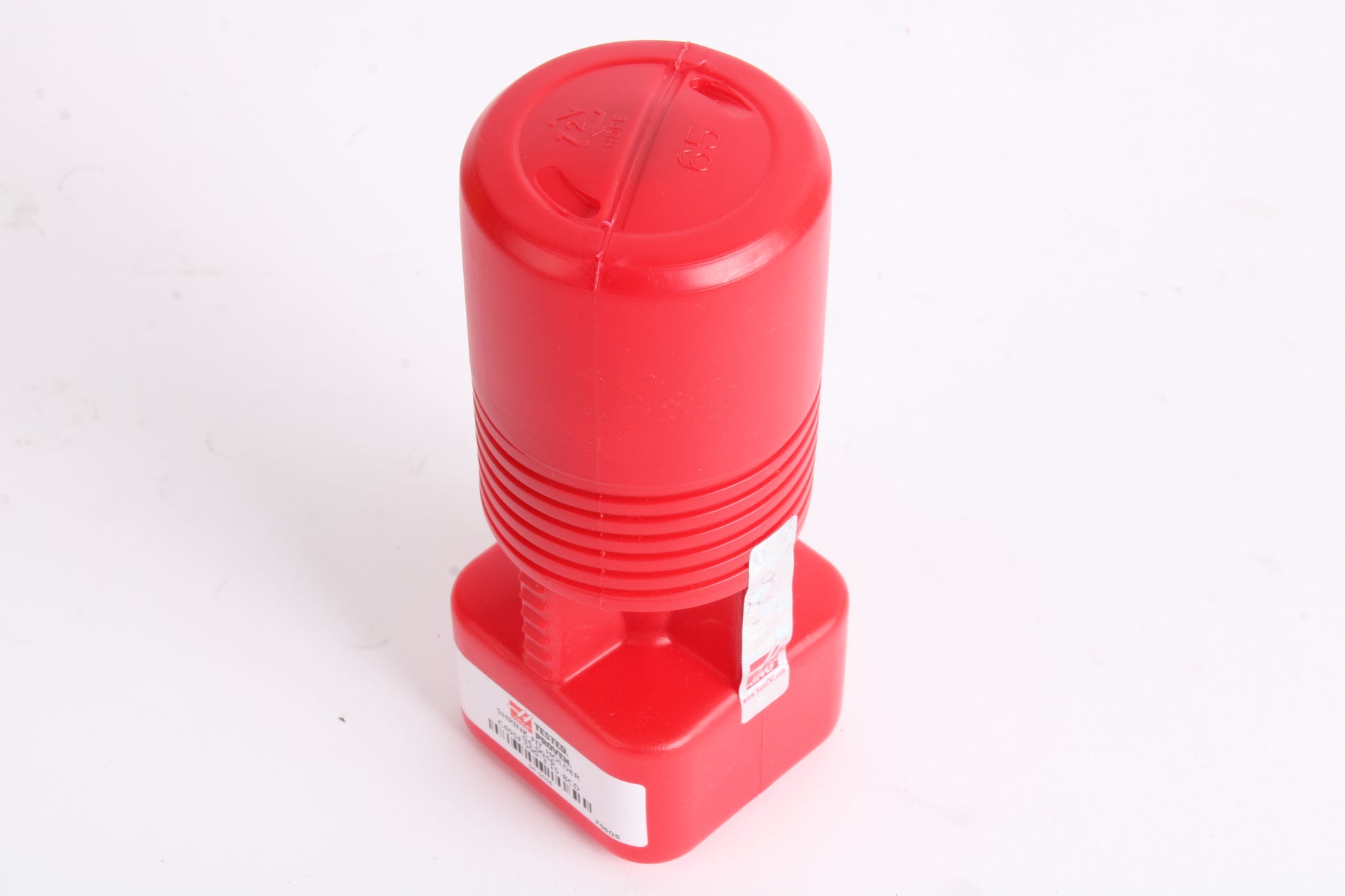

NEW - Sealed. Actual pictures of the item for sale are available. We have a quantity of 4x: 1/2" Shrink Fit Holder and is ready for shipment.

https://www.haascnc.com/haas-tooling/mill_toolholding/shrink_fit_holders/04-0046.html
Specifics
Manufacturer Haas Automation
Part Number 04-0046
Model Number C40SF.500-3.15-BCD
SKU 19-70865
Ref 23-101171
Technical Specs:
  • System of Measurement: Inch - ANSI
  • Taper: CT40
  • [ØD] Bore Diameter: 0.5 in \ ½"
  • [ØBD2] Minimum Body Diameter: 0.945 in
  • [ØBD] Maximum Body Diameter: 1.26 in
  • [GL] Gage Length: 3.15 in
  • [OAL] Overall Length: 5.837 in
  • [LSCN] Minimum Clamping Length: 1.496 in
  • [LSCX] Maximum Clamping Length: 1.929 in
  • [SIG°] Angle: 4.5 Degree
  • Concentricity: 0.00012”
  • Balanced to RPM: 25,000
  • Retention Knob Thread Size: 5/8"-11
  • Through Tool Coolant:  Yes
  • Weight: 2.4 lbs \ 1.1 kg
  • Country of Origin: South Korea
