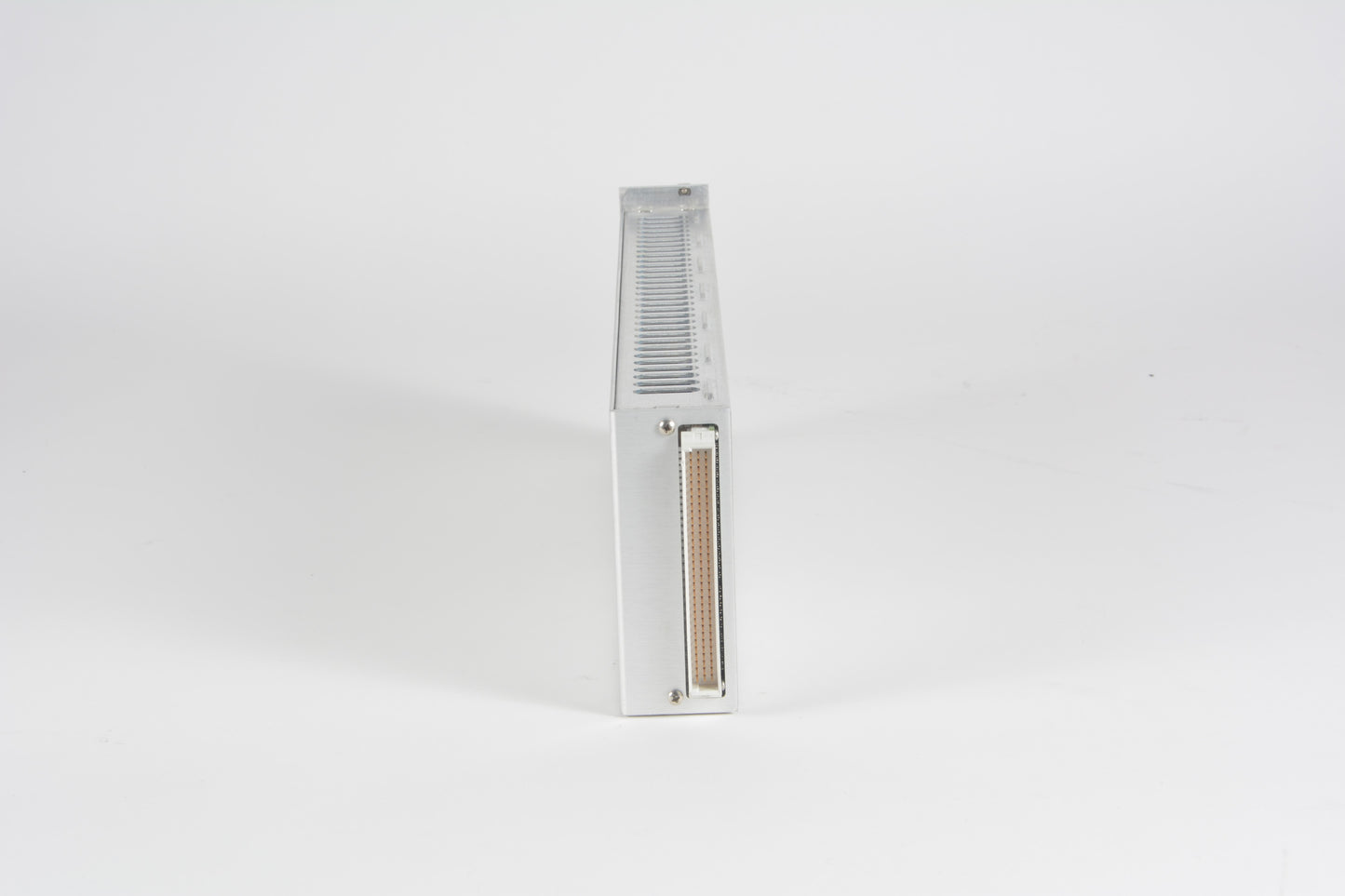

VIAVI JDSU JDS Uniphase SWS16103 Dual Band Switch (L + C Band) for OWB10002

Model: SWS16103
Serial Number: ED085547
Series: SWS15100/SWS16100/SWS2000/SWS1700

Testing:
This unit was pulled from a working environment for reasons that did not include any defects or performance issues. All testing we were capable of performing at our warehouse implies this init functions normally.

Cracked plastic tab on front of unit.

Full 30-day Guarantee.After testing this unit we are confident enough to guarantee it for a full 30 days.

Product Description

The JDSU / JDS Uniphase SWS 15100 system is a fast, accurate and flexible test solution for characterizing the wavelength dependence of passive optical components. The SWS system consists of: a tunable laser source such as the SWS15101, a source optics module, a receiver chassis such as the OWB10002, a control module such as the SWS15106, and one or more detector modules such as the SWS15107 and application software and for dual band systems a switch such as this SWS16103.

With a ± 0.002 nm absolute wavelength accuracy over the whole 1420-1630 nm range, a high sweep speed of 20 nm/s, SWS system provides the maximum economical performance available; the distributed architecture supports up to eight separate, independently controlled measurement stations per transmitter. The SWS system can be applied to the measurement of any passive fiberoptic device with up to 128 output channels at each measurement station. Such devices include couplers, splitters, isolators, WDM, DWDM, attenuators, switches, fiber Bragg gratings,waveguide devices,wavelockers, gain flatteners and interleavers.

Key Features & Specifications

Designed for use with:
• SWS1700 Series
• SWS2000 Series
• SWS15100 Series
• SWS16100 Series
• VP-80 Series
• Other systems that utilize the OWB10002 Mainframe
• For either C- or L-band operation
• # of Input: 2
• # of Output: 1

More Specifications available: Click here for Series User's Manual PDF.

**Calibration**We do not perform calibration. We test our units for functionality and guarantee that functionality for 30 days. We will accept returns within the 30 days if for some reason a unit can not be calibrated.
